RFA-292RF AdaptersShengfeng Hydrowave

2.92mm Adapters

DC–40 GHz · 50 Ω · 21 part numbers

Precision 2.92mm RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 21 part numbers (straight, flange-mount, bulkhead, right-angle) for 50 Ω systems, DC–40 GHz. Order by the manufacturer part number shown in the table below.

⁦DC–40 GHz⁩
Frequency Range
⁦50 Ω⁩
Impedance
⁦21⁩
Part Numbers
Request a Quote

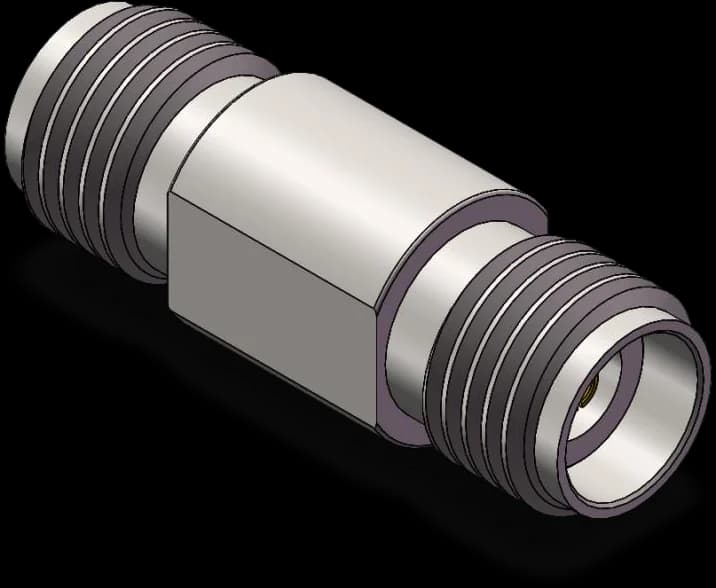

2.92mm Adapters - DC–40 GHz · 50 Ω · 21 part numbers

Key Features

⁦DC–40 GHz, 50 Ω precision adapters⁩
⁦Max. VSWR 1.15–1.25 and max. insertion loss 0.25–0.35 dB, depending on style⁩
⁦SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated⁩
⁦PEI insulator, MIL-STD-348 interface⁩
⁦Over 500 mating cycles; −55 °C to +165 °C operating range⁩
⁦21 part numbers: straight, flange-mount, bulkhead, right-angle⁩

Part Numbers (21)

Straight

  • SFHW12-00-080
    2.92mm Female2.92mm Female
    Variant 1 of 2
    Max. VSWR
    ≤ 1.15
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    26

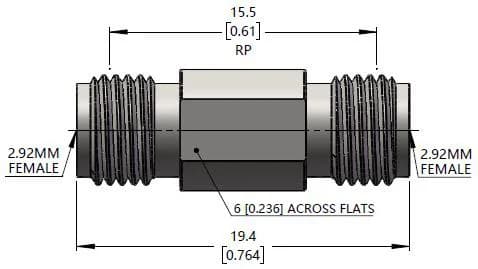

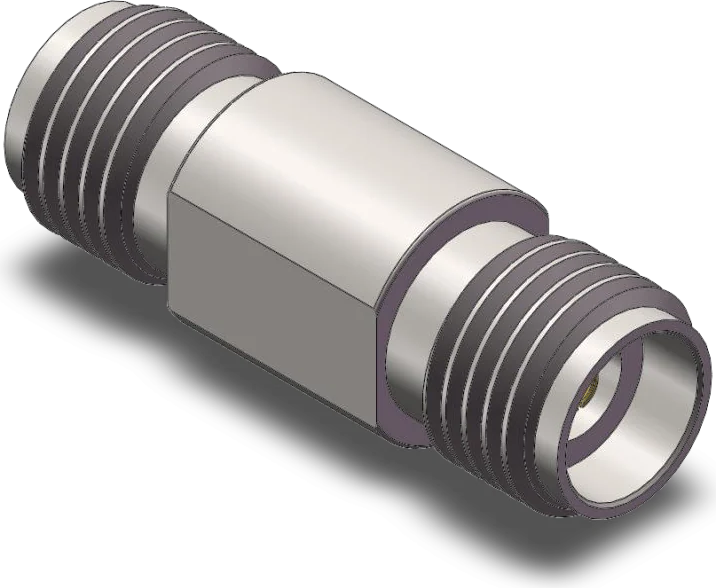

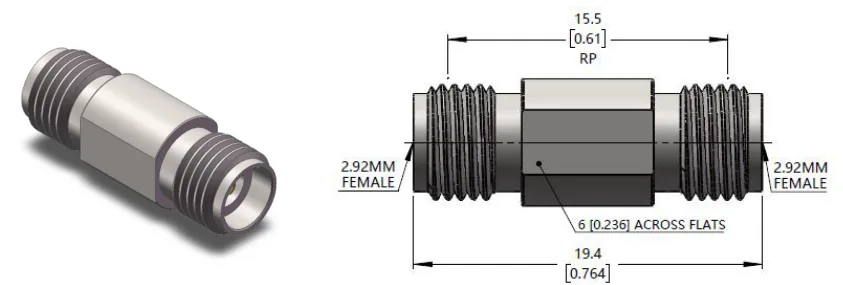

    SFHW12-00-080 ProductProductSFHW12-00-080 Side viewSide view
  • SFHW12-00-081
    2.92mm Male2.92mm Female
    Variant 1 of 2
    Max. VSWR
    ≤ 1.15
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    26

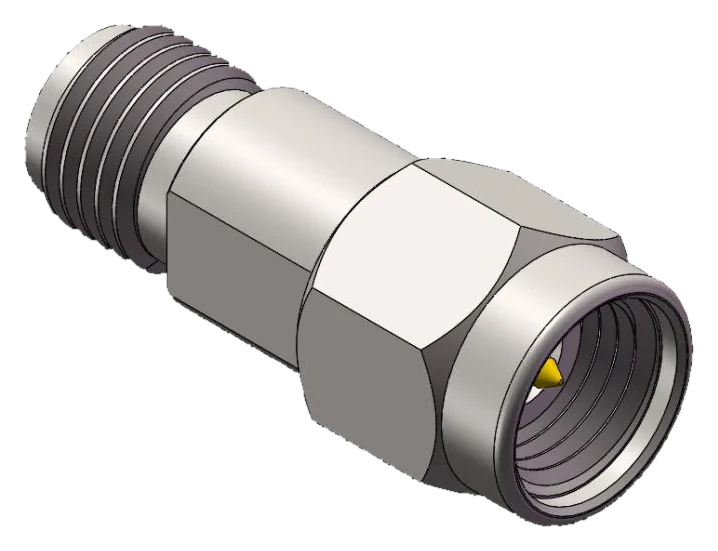

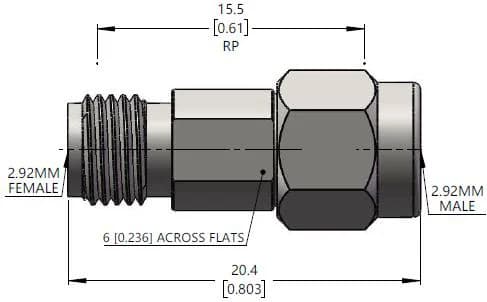

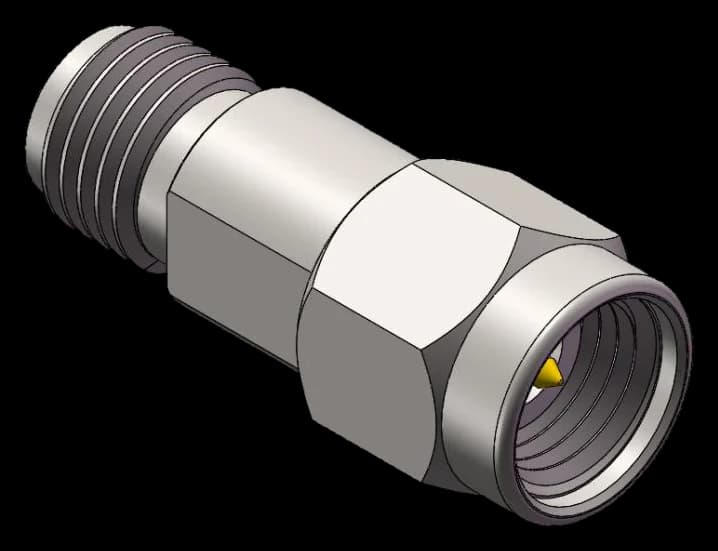

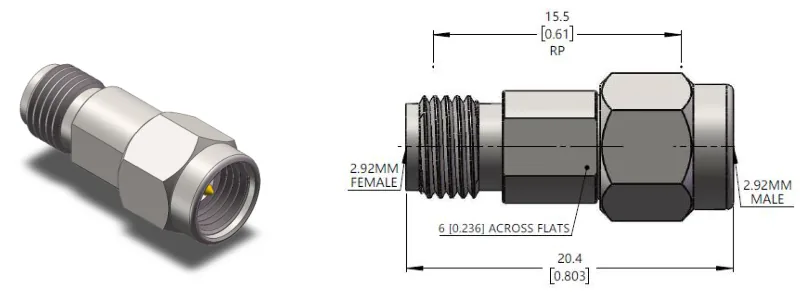

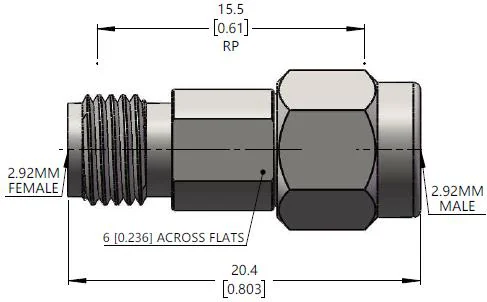

    SFHW12-00-081 ProductProductSFHW12-00-081 Side viewSide view

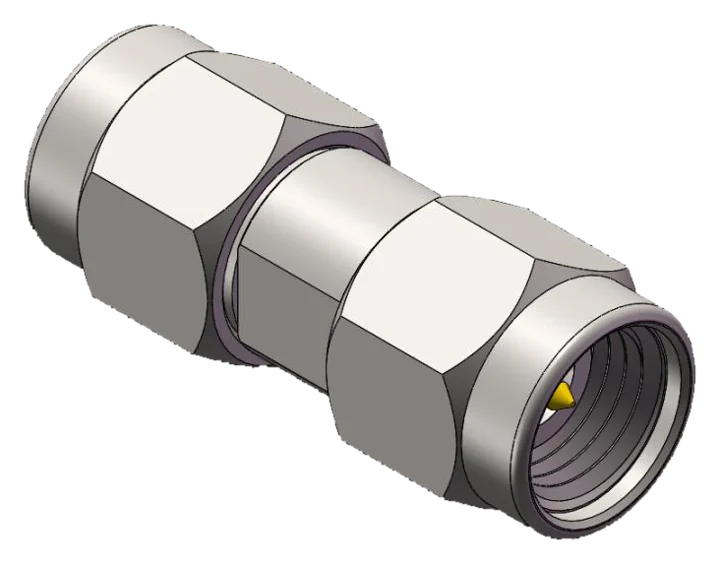

  • SFHW12-00-082
    2.92mm Male2.92mm Male
    Max. VSWR
    ≤ 1.15
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    26

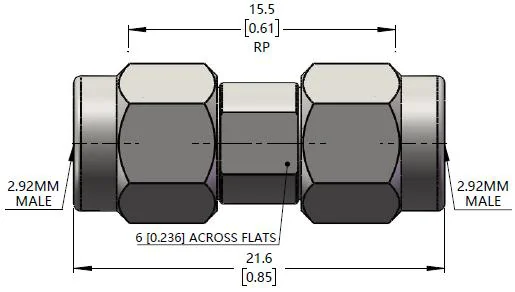

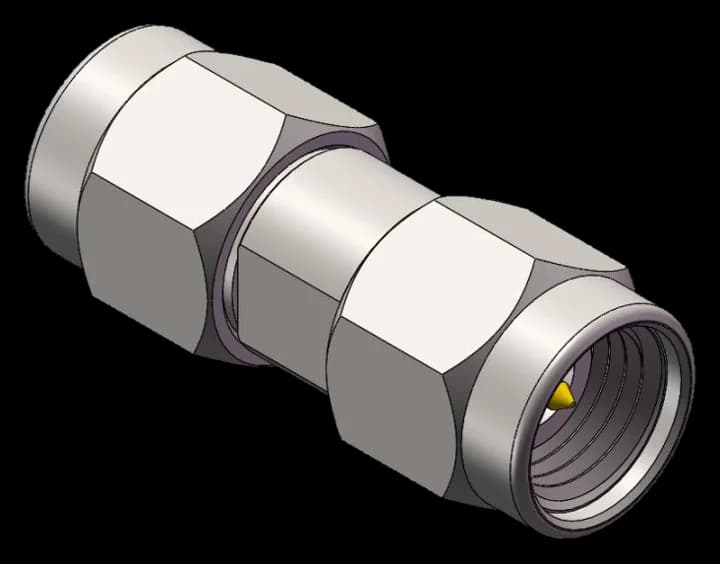

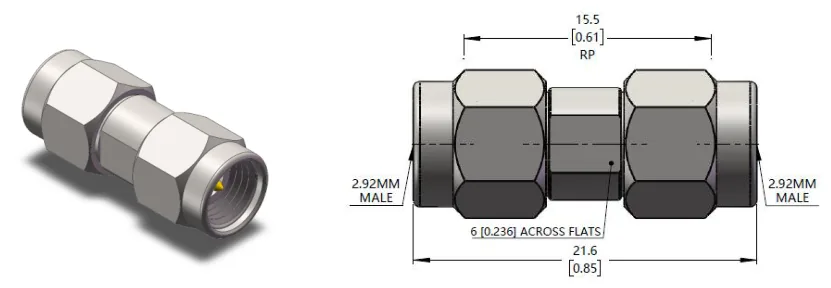

    SFHW12-00-082 ProductProductSFHW12-00-082 Side viewSide view

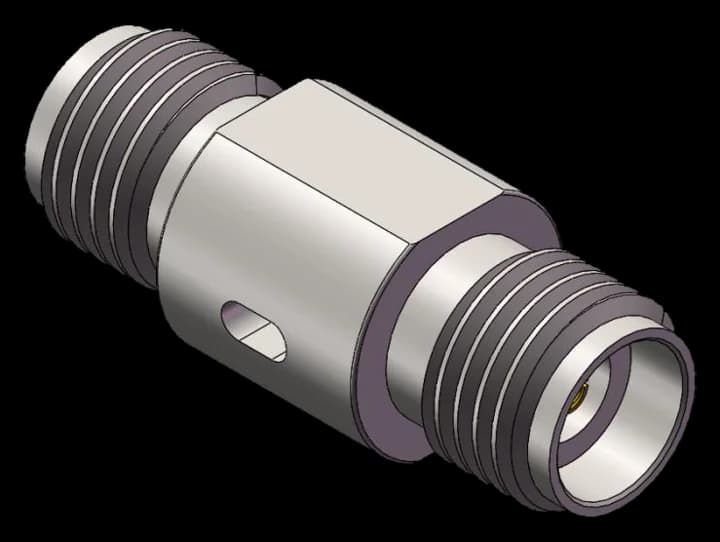

  • SFHW12-00-083
    2.92mm Female2.92mm Female
    Variant 2 of 2
    Max. VSWR
    ≤ 1.15
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    26

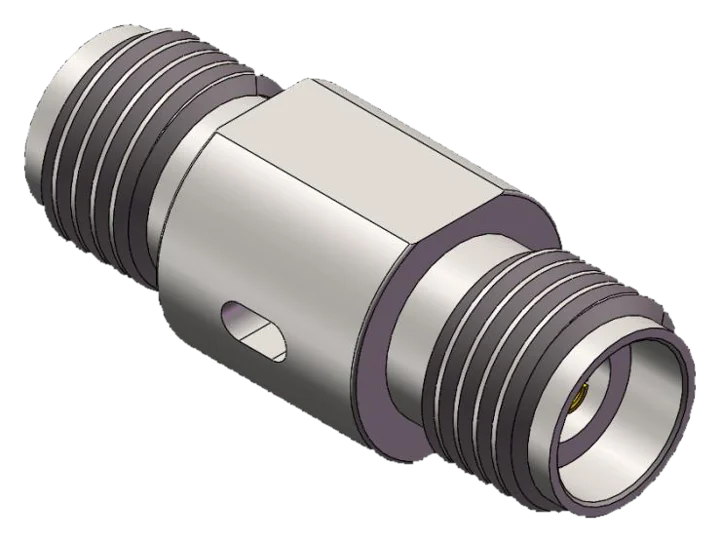

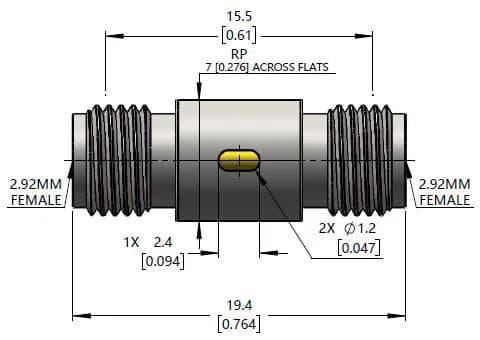

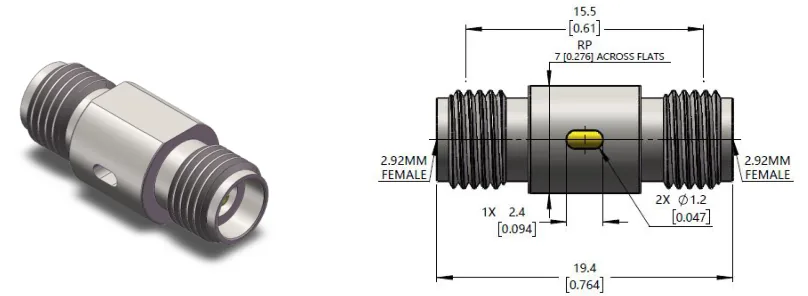

    SFHW12-00-083 ProductProductSFHW12-00-083 Side viewSide view
  • SFHW12-00-084
    2.92mm Male2.92mm Female
    Variant 2 of 2
    Max. VSWR
    ≤ 1.15
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    26

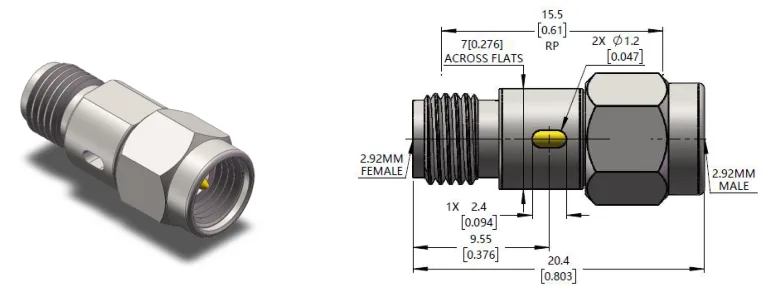

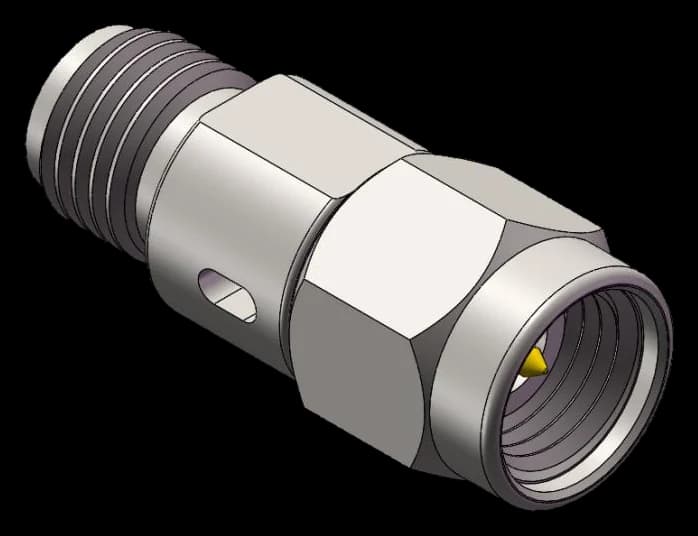

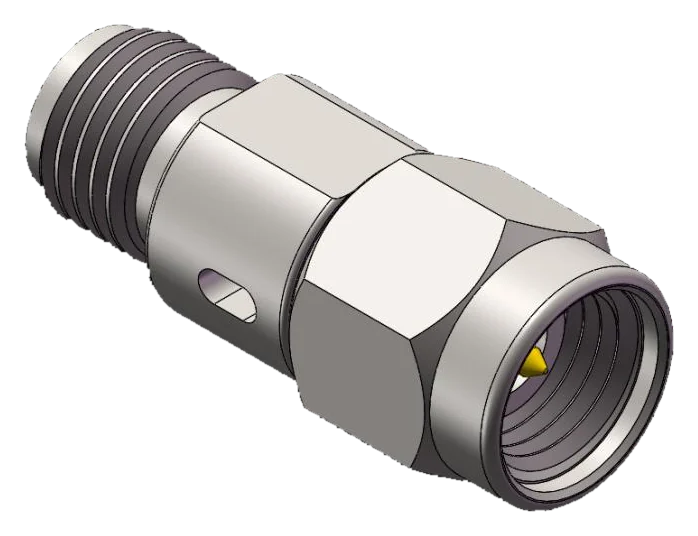

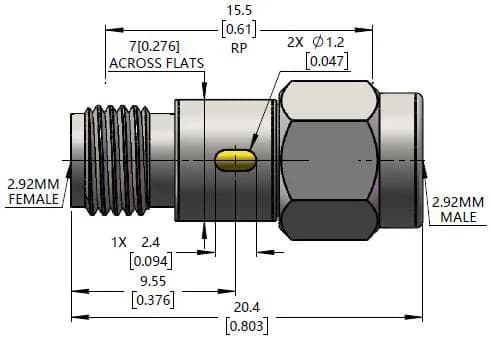

    SFHW12-00-084 ProductProductSFHW12-00-084 Side viewSide view

Flange mount

  • SFHW12-00-085
    2.92mm Female2.92mm Female
    Variant 1 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    27

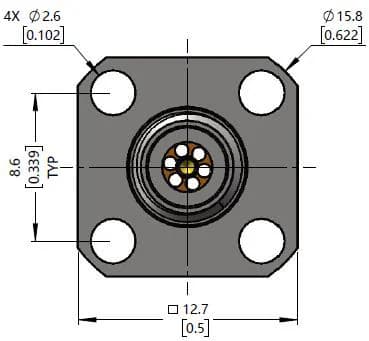

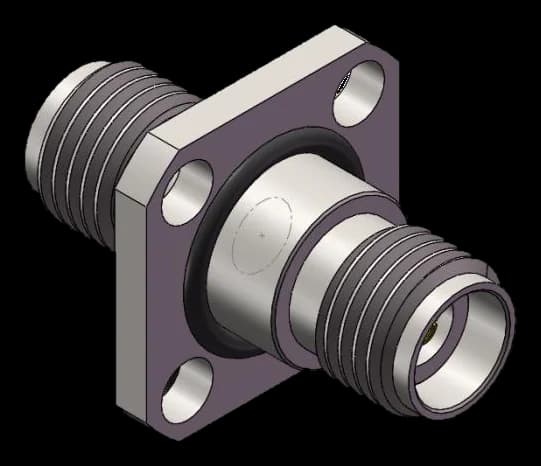

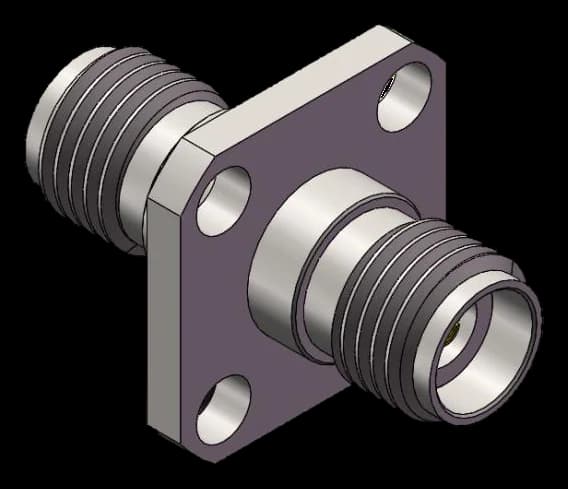

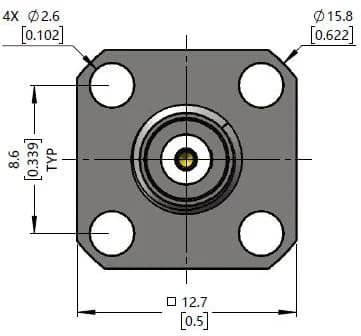

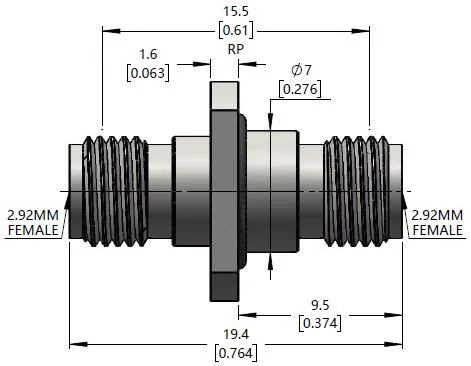

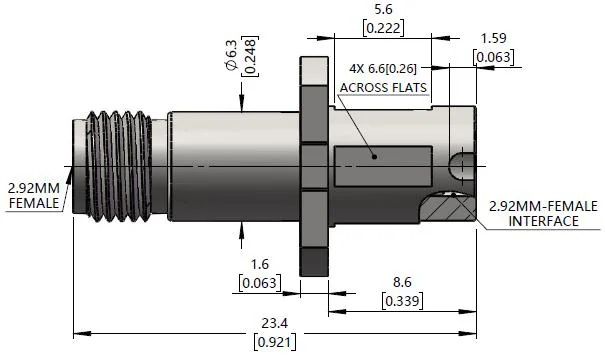

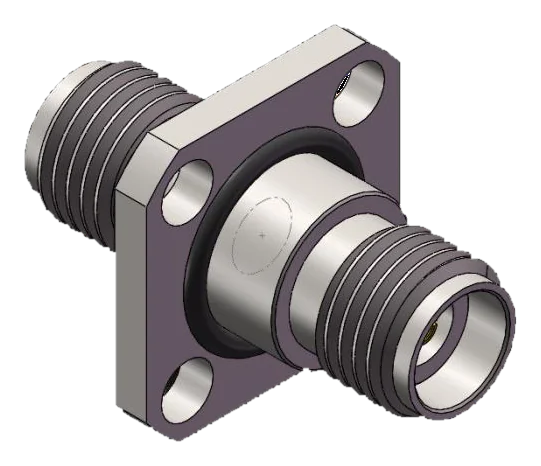

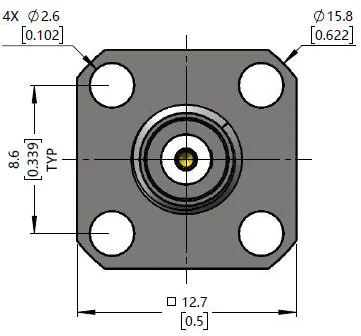

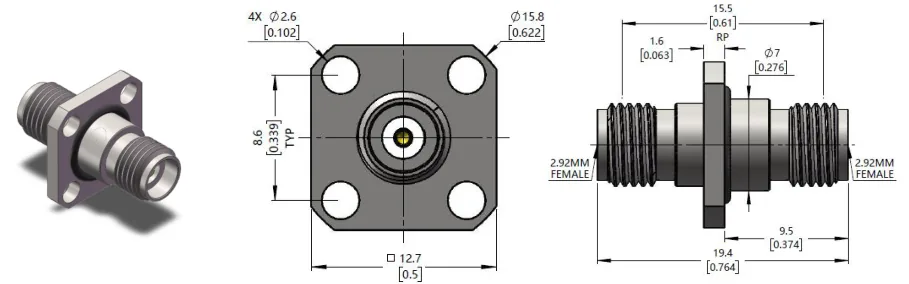

    SFHW12-00-085 ProductProductSFHW12-00-085 Front viewFront viewSFHW12-00-085 Side viewSide view
  • SFHW12-00-086
    2.92mm Female2.92mm Female
    Variant 2 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    27

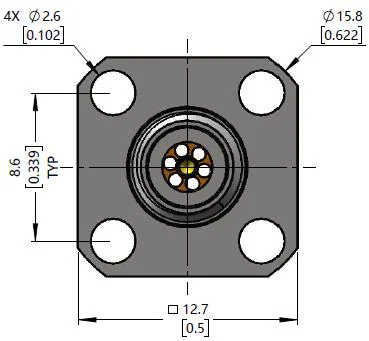

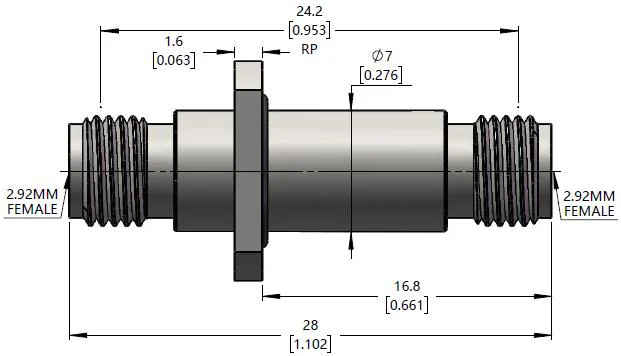

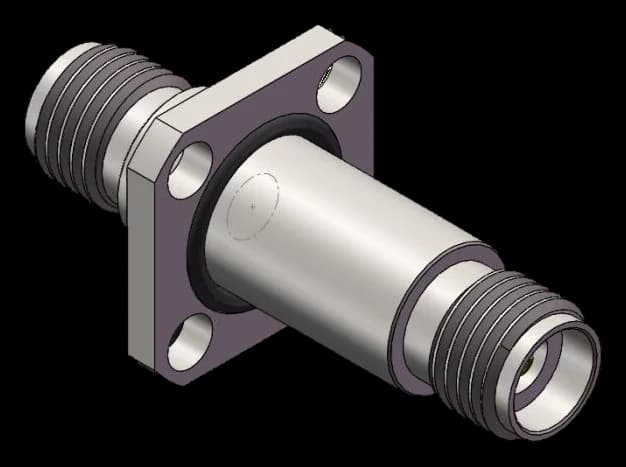

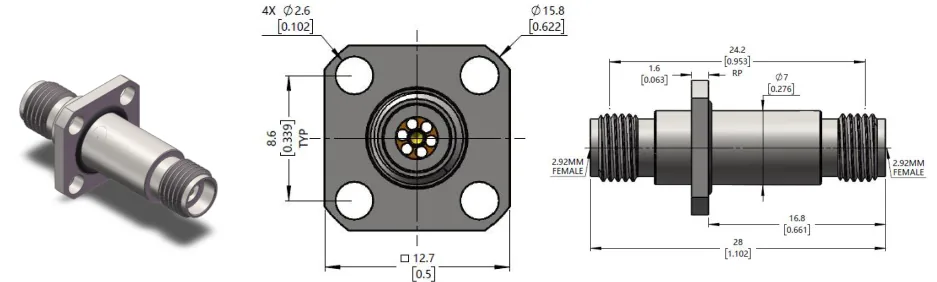

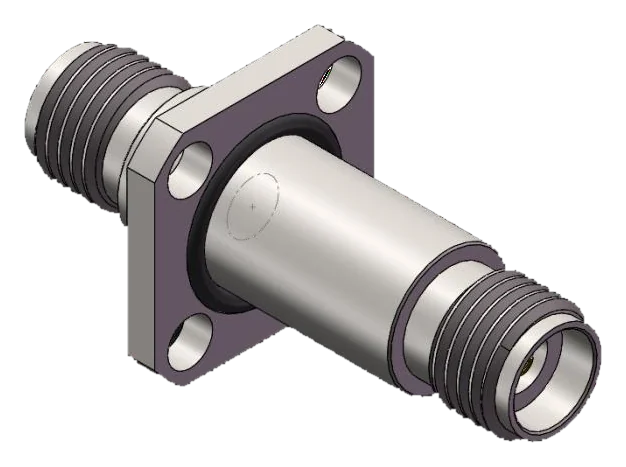

    SFHW12-00-086 ProductProductSFHW12-00-086 Front viewFront viewSFHW12-00-086 Side viewSide view
  • SFHW12-00-087
    2.92mm Female2.92mm Female
    Variant 3 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    27

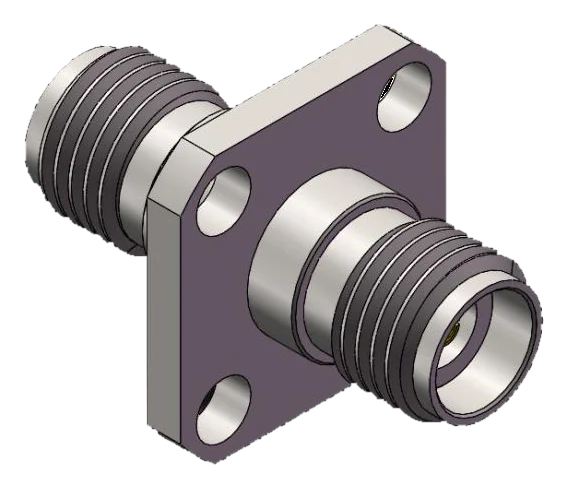

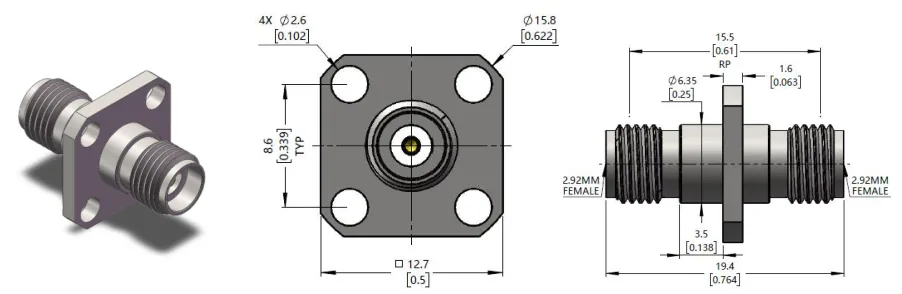

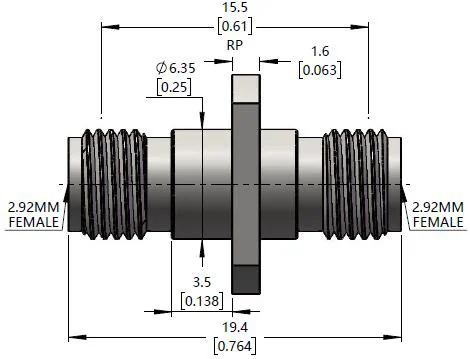

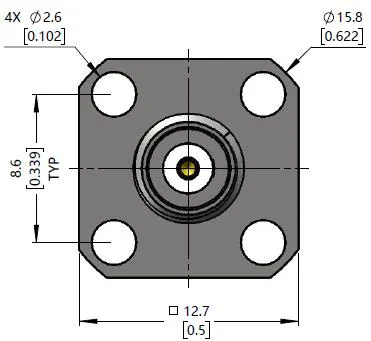

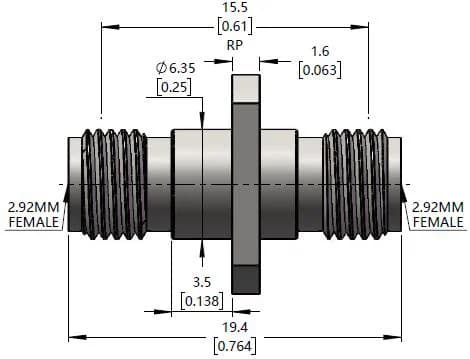

    SFHW12-00-087 ProductProductSFHW12-00-087 Front viewFront viewSFHW12-00-087 Side viewSide view
  • SFHW12-00-088
    2.92mm Female2.92mm Female
    Variant 4 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    27

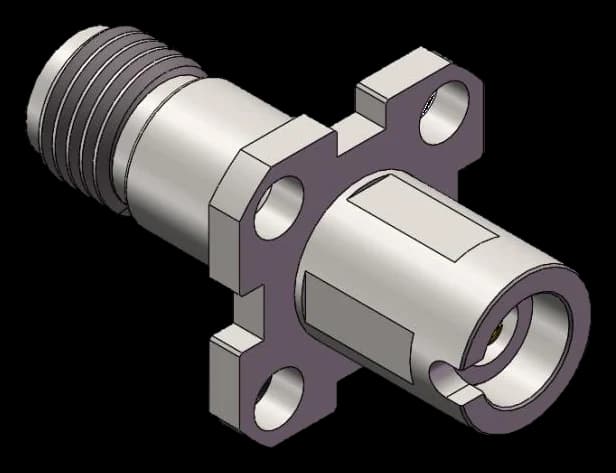

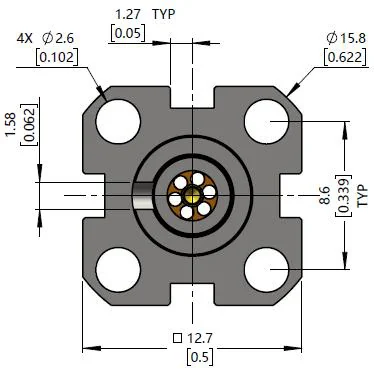

    SFHW12-00-088 ProductProductSFHW12-00-088 Front viewFront viewSFHW12-00-088 Side viewSide view
  • SFHW12-00-089
    2.92mm Female2.92mm Female
    Variant 5 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    27

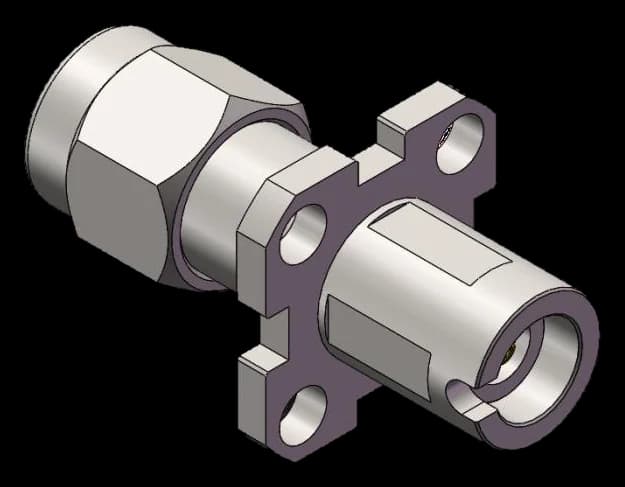

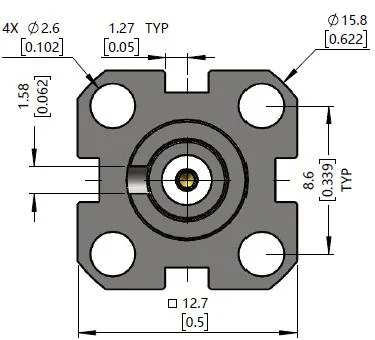

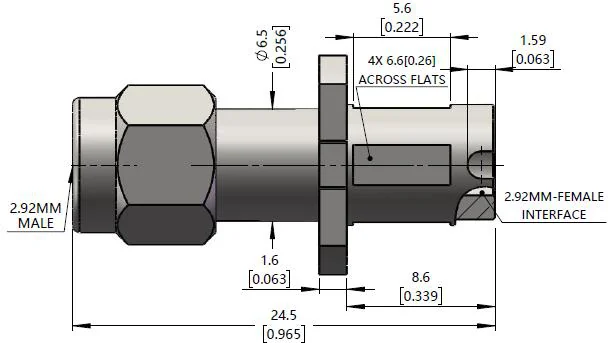

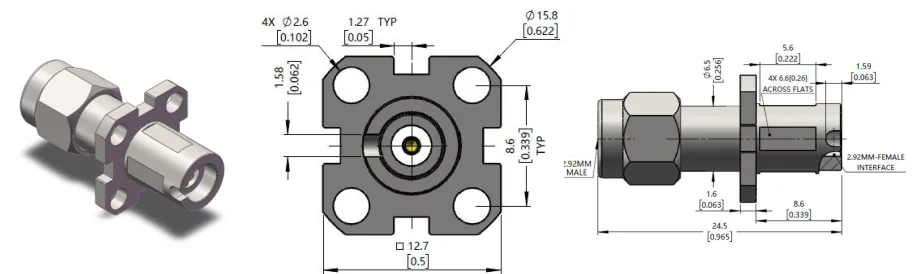

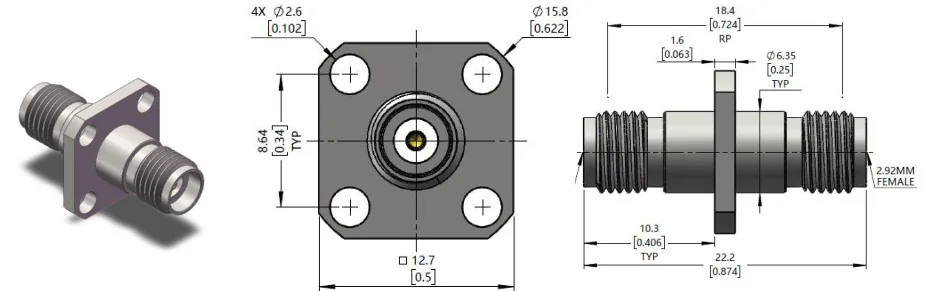

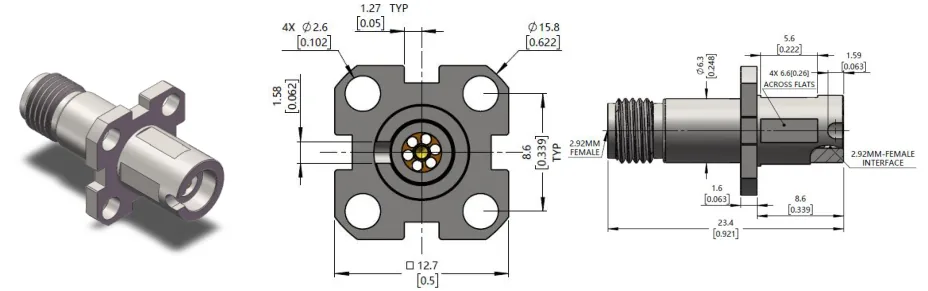

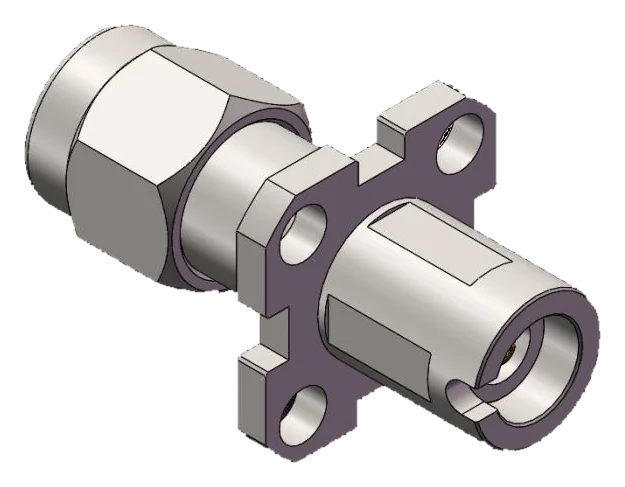

    SFHW12-00-089 ProductProductSFHW12-00-089 Front viewFront viewSFHW12-00-089 Side viewSide view
  • SFHW12-00-090
    2.92mm Female2.92mm Female
    Variant 6 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    28

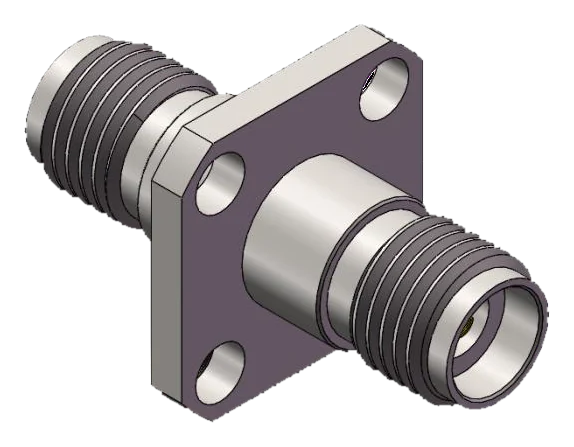

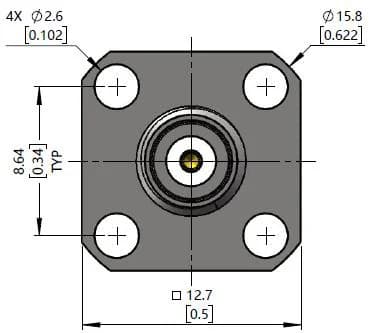

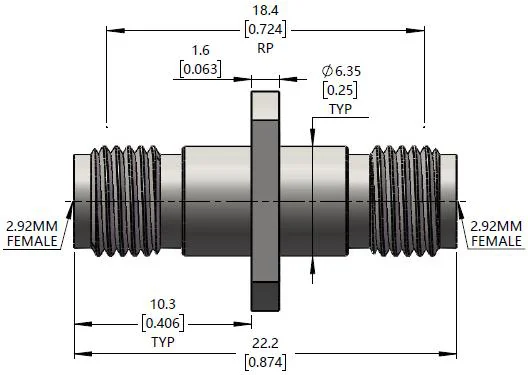

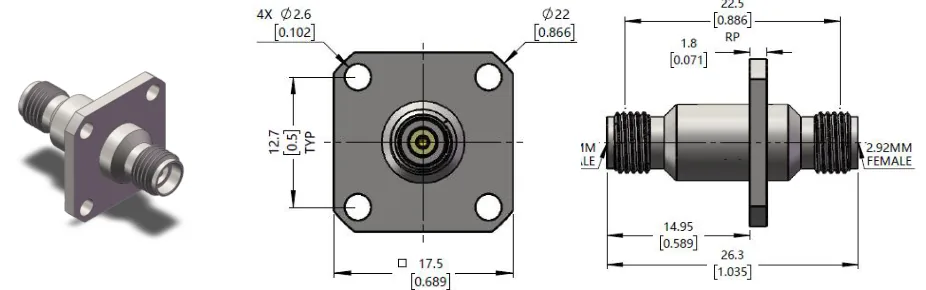

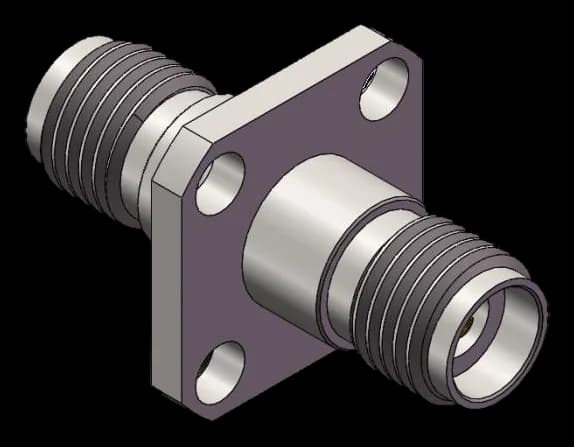

    SFHW12-00-090 ProductProductSFHW12-00-090 Front viewFront viewSFHW12-00-090 Side viewSide view
  • SFHW12-00-091
    2.92mm Female2.92mm Female
    Variant 7 of 7
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.30 dB
    Catalog page
    28

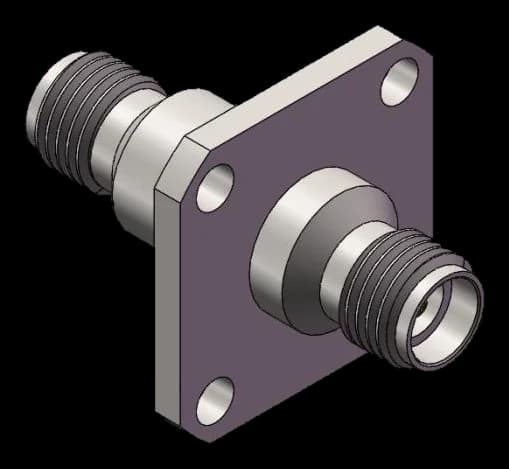

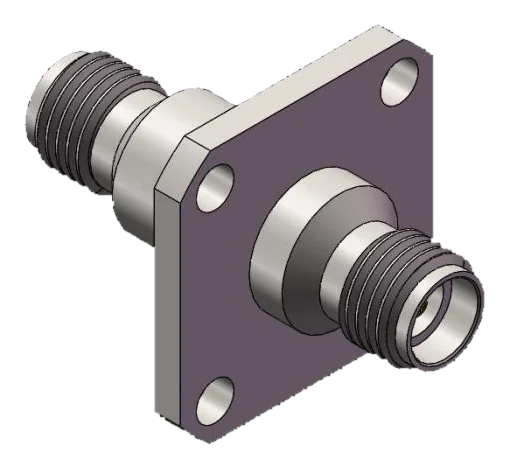

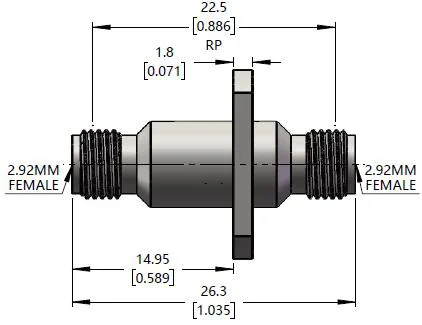

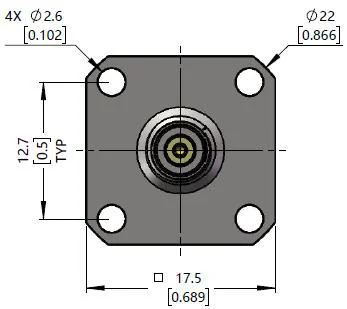

    SFHW12-00-091 ProductProductSFHW12-00-091 Front viewFront viewSFHW12-00-091 Side viewSide view

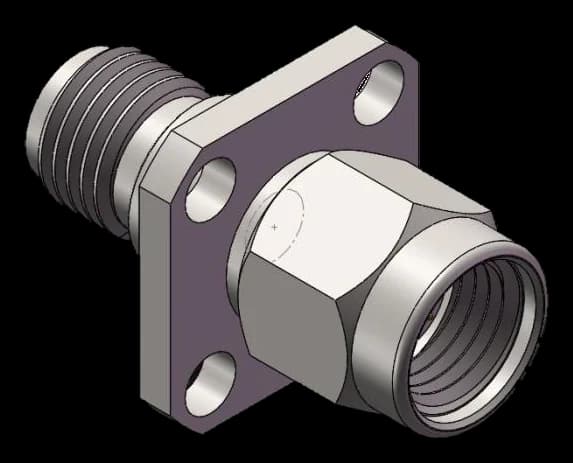

  • SFHW12-00-092
    2.92mm Female2.92mm Male
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.25 dB
    Catalog page
    28

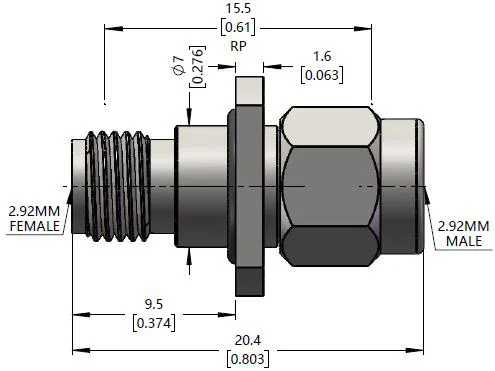

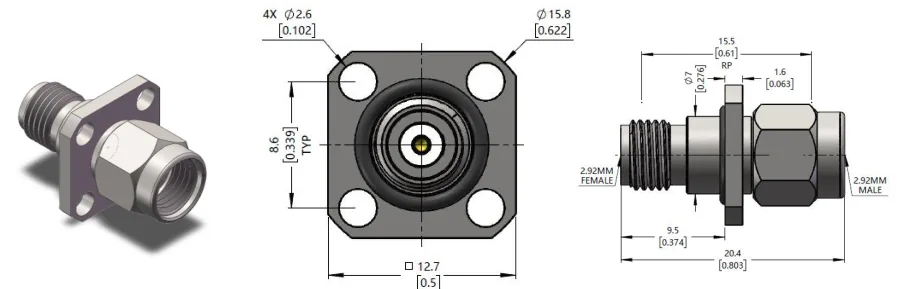

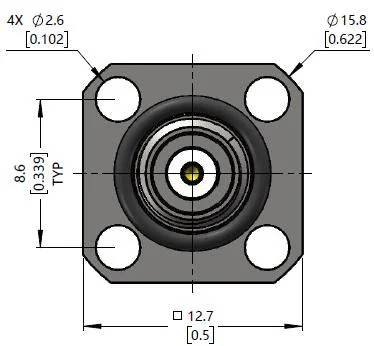

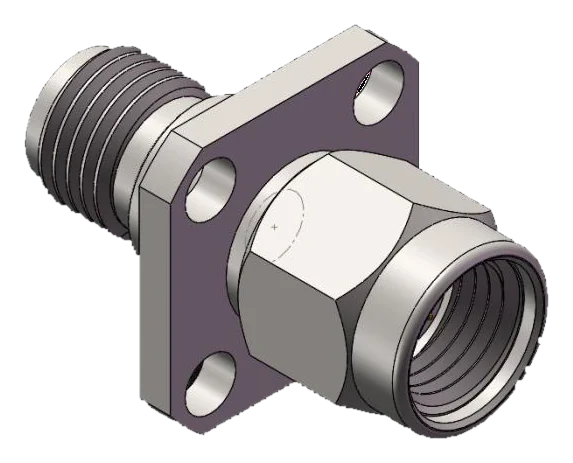

    SFHW12-00-092 ProductProductSFHW12-00-092 Front viewFront viewSFHW12-00-092 Side viewSide view

Bulkhead

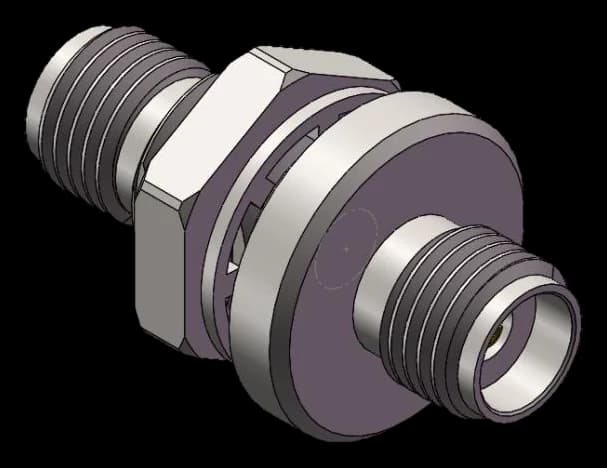

  • SFHW12-00-093
    2.92mm Female2.92mm Female
    Variant 1 of 4
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.35 dB
    Catalog page
    29

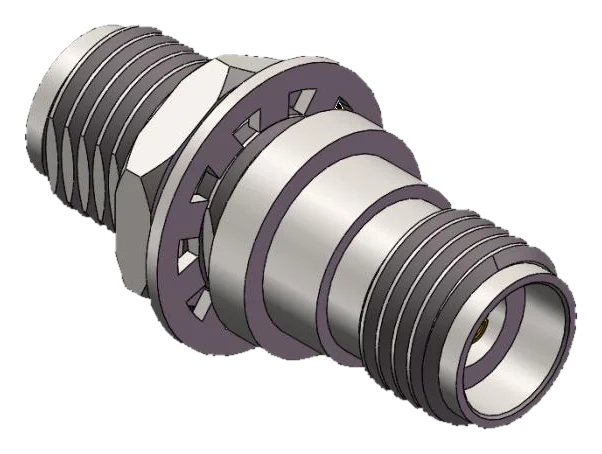

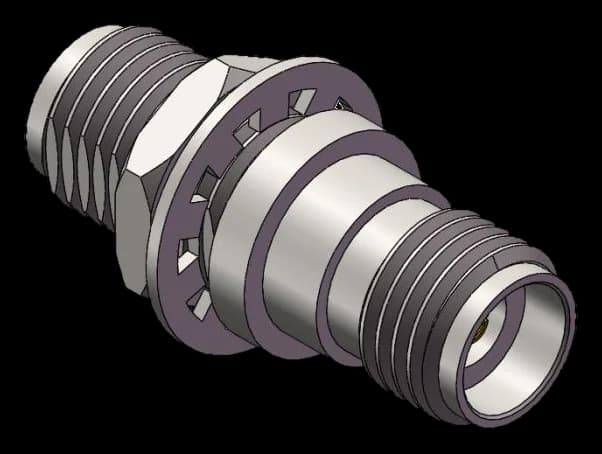

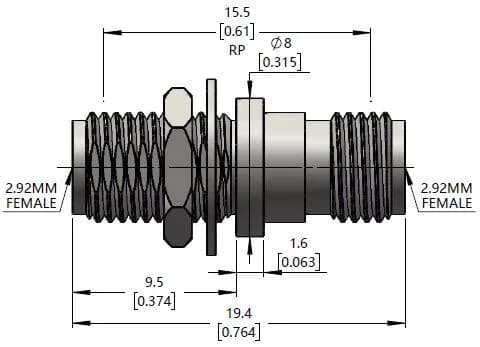

    SFHW12-00-093 ProductProductSFHW12-00-093 Front viewFront viewSFHW12-00-093 Side viewSide view
  • SFHW12-00-094
    2.92mm Female2.92mm Female
    Variant 2 of 4
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.35 dB
    Catalog page
    29

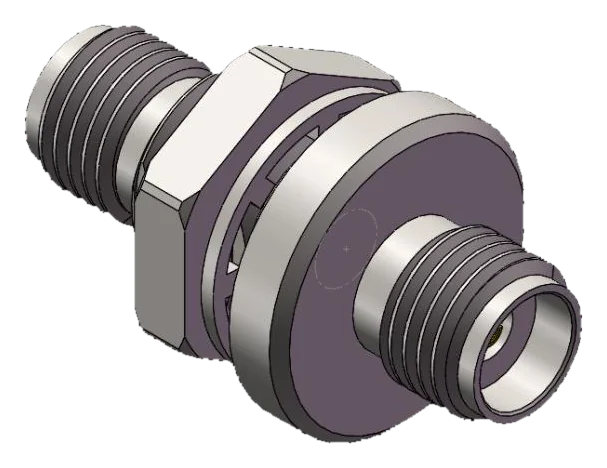

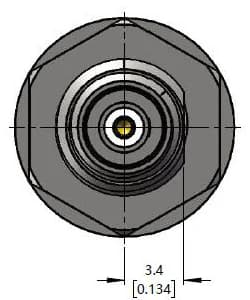

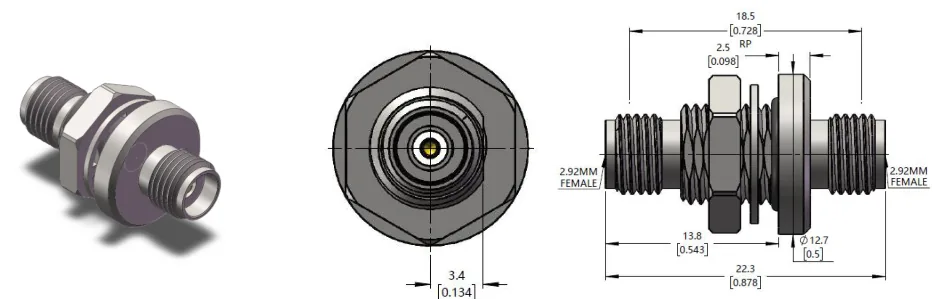

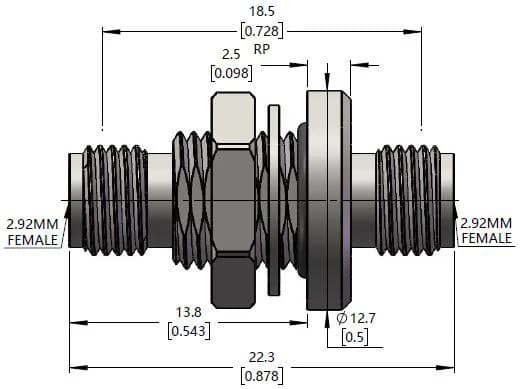

    SFHW12-00-094 ProductProductSFHW12-00-094 Front viewFront viewSFHW12-00-094 Side viewSide view
  • SFHW12-00-095
    2.92mm Female2.92mm Female
    Variant 3 of 4
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.35 dB
    Catalog page
    29

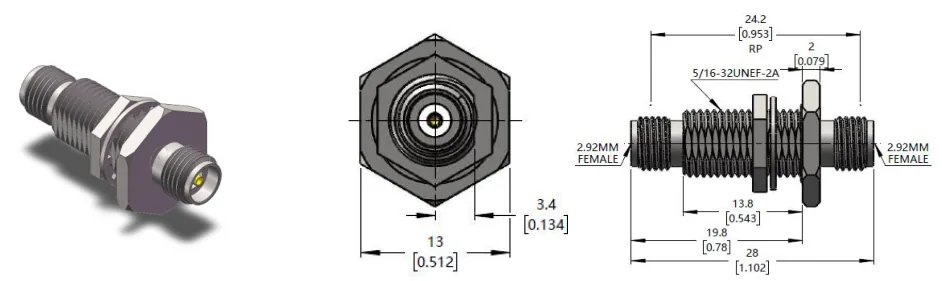

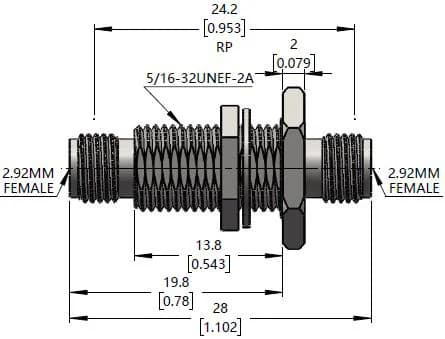

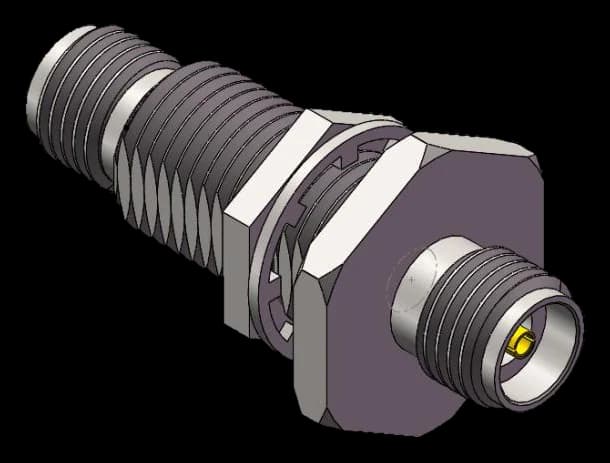

    SFHW12-00-095 ProductProductSFHW12-00-095 Front viewFront viewSFHW12-00-095 Side viewSide view
  • SFHW12-00-096
    2.92mm Female2.92mm Female
    Variant 4 of 4
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.35 dB
    Catalog page
    29

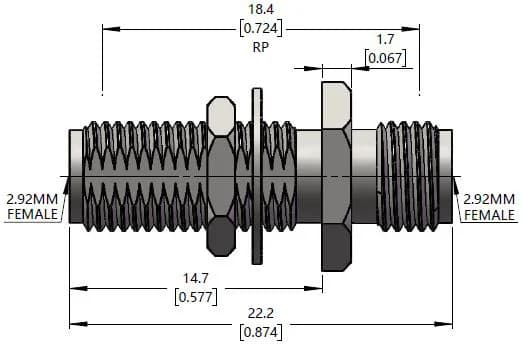

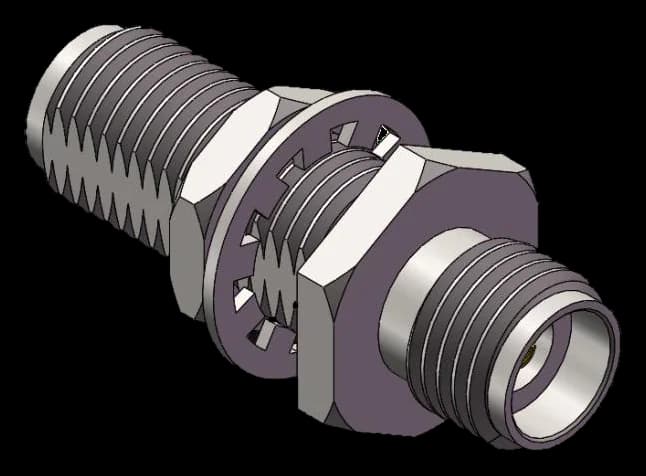

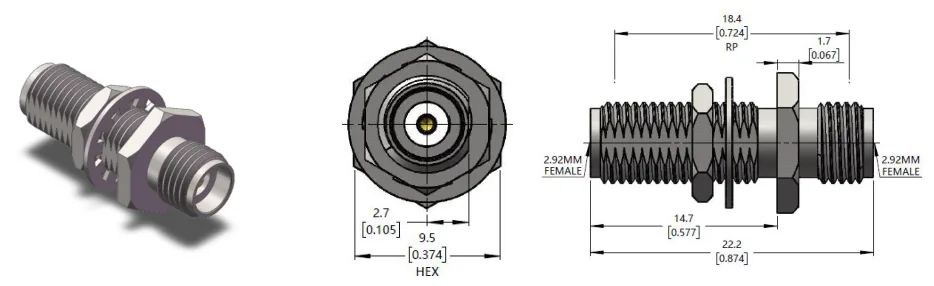

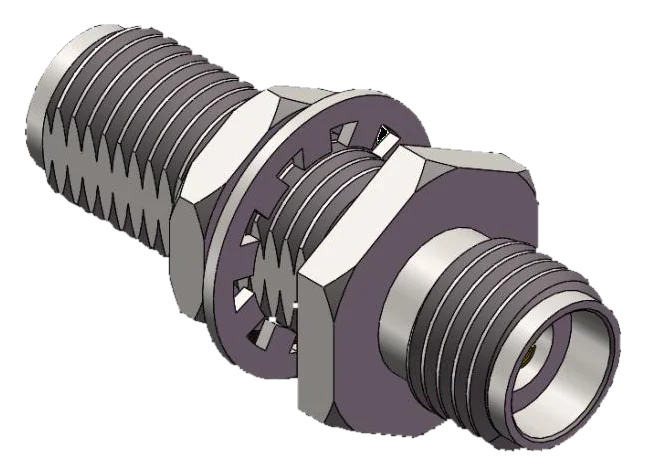

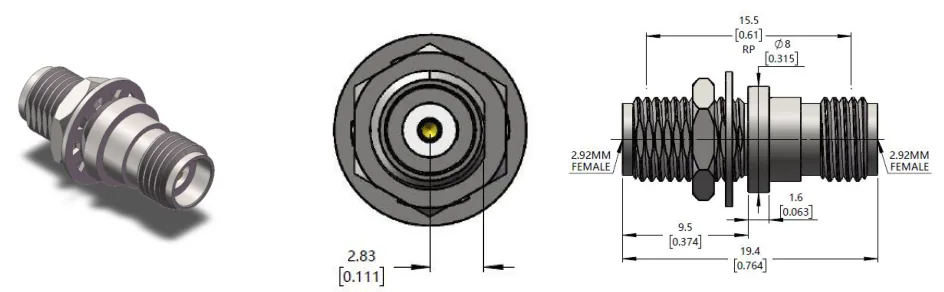

    SFHW12-00-096 ProductProductSFHW12-00-096 Front viewFront viewSFHW12-00-096 Side viewSide view
  • SFHW12-00-097
    2.92mm Female2.92mm Male
    Max. VSWR
    ≤ 1.20
    Max. insertion loss
    ≤ 0.35 dB
    Catalog page
    29

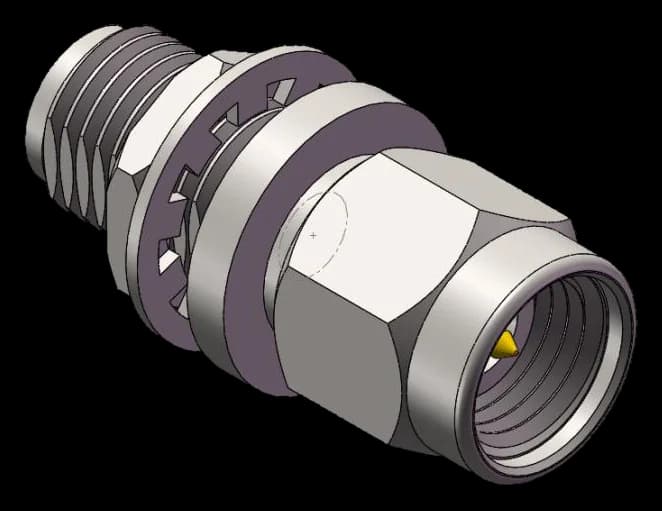

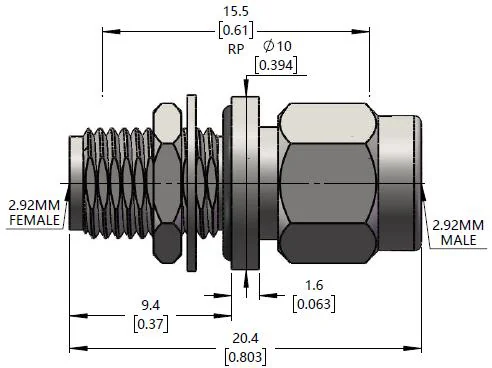

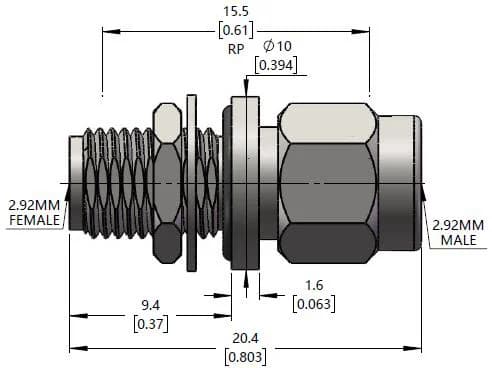

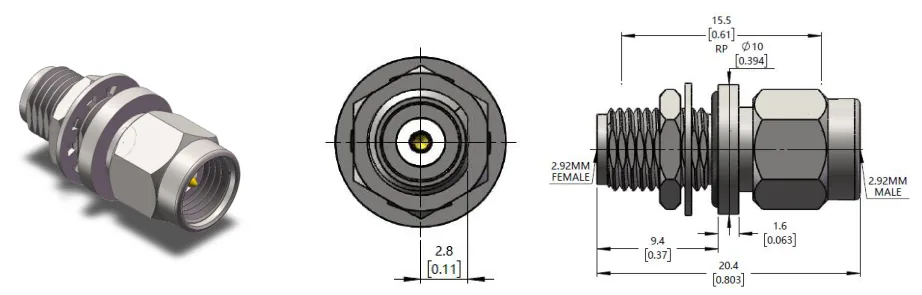

    SFHW12-00-097 ProductProductSFHW12-00-097 Front viewFront viewSFHW12-00-097 Side viewSide view

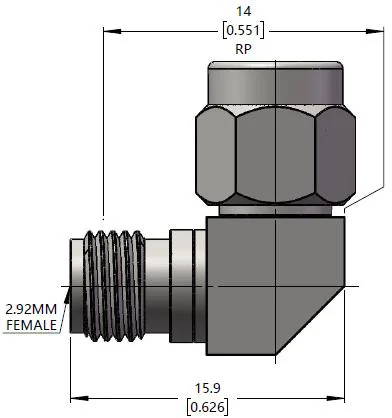

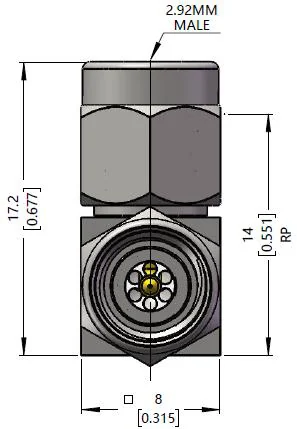

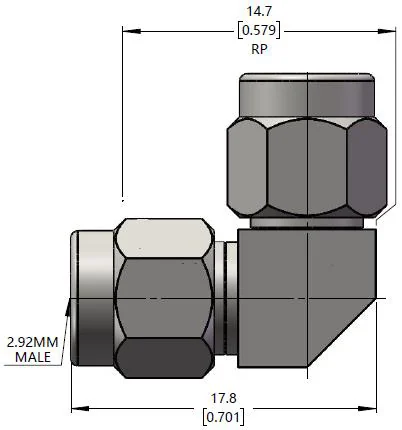

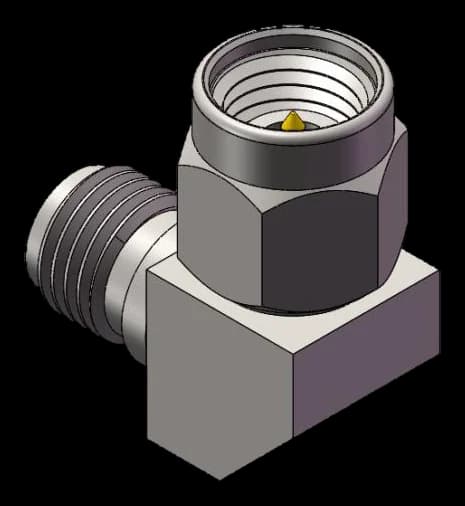

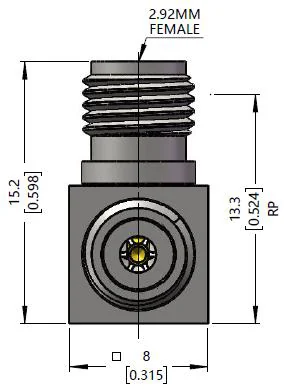

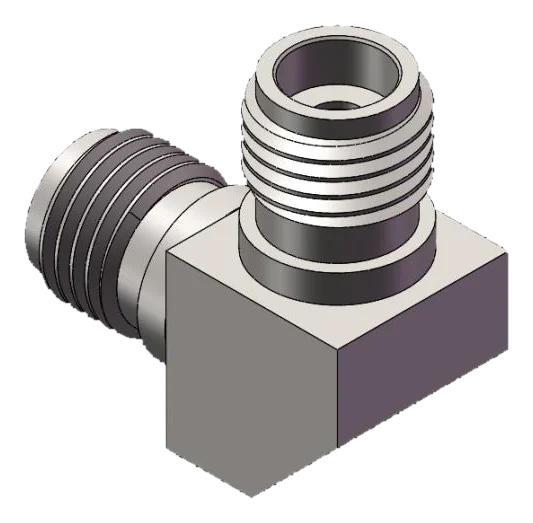

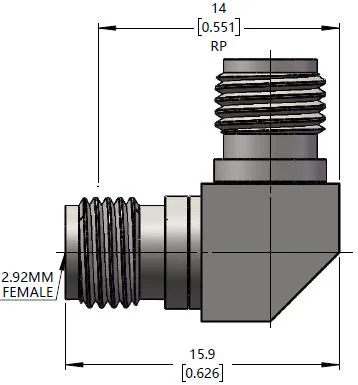

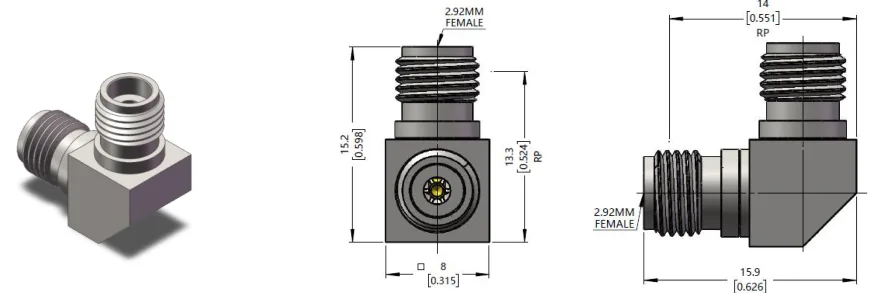

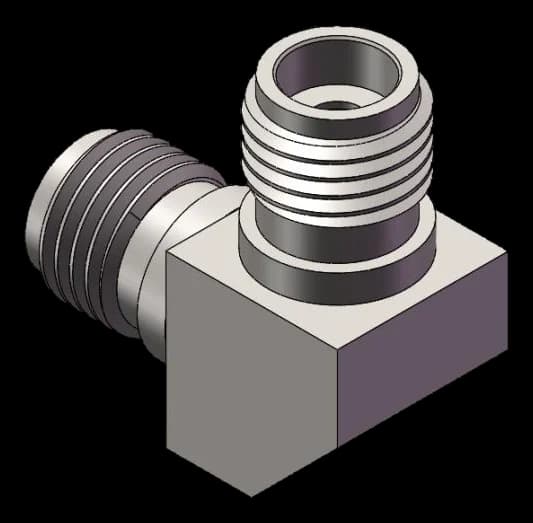

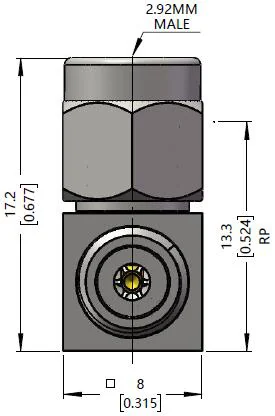

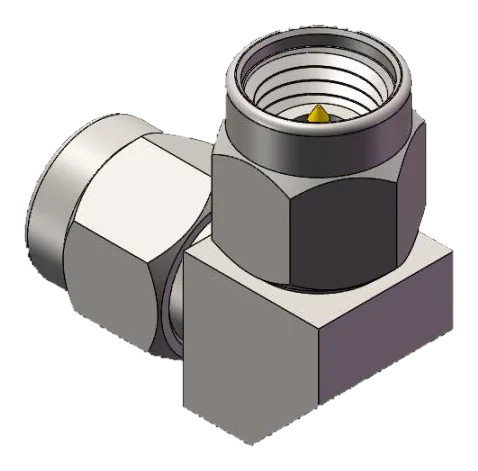

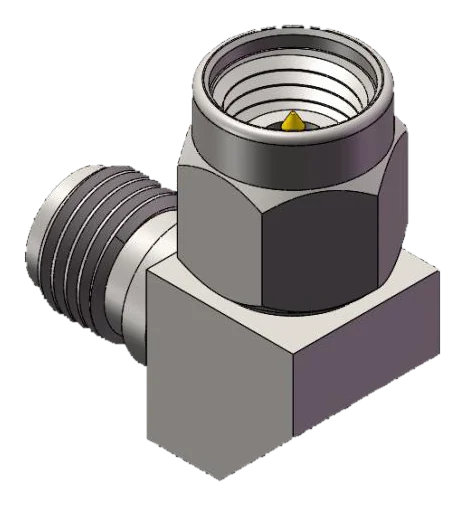

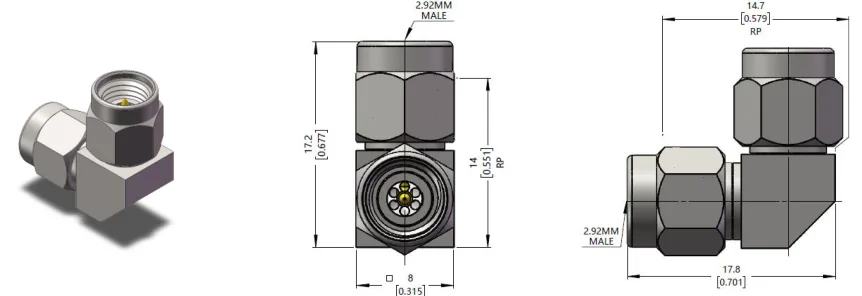

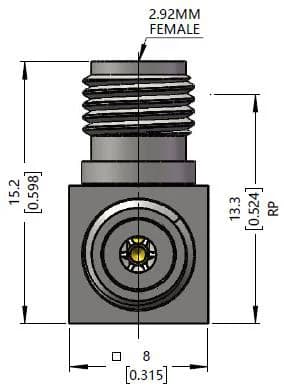

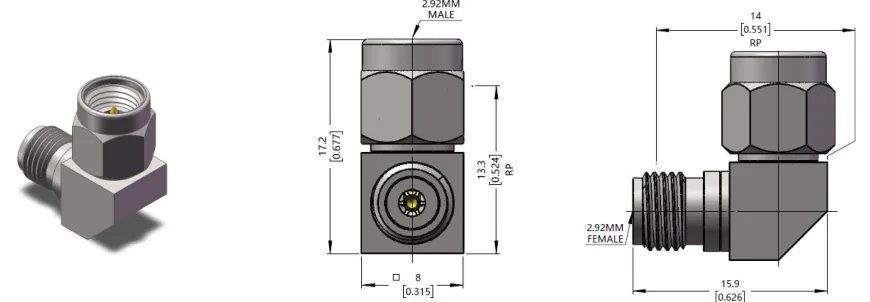

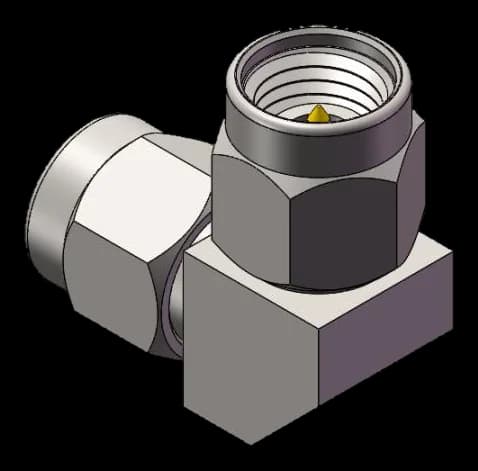

Right angle

Maximum values from the manufacturer's data. Contact Koto Electronics for stock and pricing.
