2.92mm to SSMA Adapters

DC–40 GHz · 50 Ω · 4 part numbers

Precision 2.92mm-to-SSMA RF adapters from Shengfeng Hydrowave, available in Israel through Koto Electronics. 4 part numbers (straight) for 50 Ω systems, DC–40 GHz. Order by the manufacturer part number shown in the table below.

⁦DC–40 GHz⁩

Frequency Range

⁦50 Ω⁩

Impedance

⁦4⁩

Part Numbers

Request a Quote

Key Features

⁦DC–40 GHz, 50 Ω precision adapters⁩

⁦Max. VSWR 1.2 and max. insertion loss 0.25 dB, depending on style⁩

⁦SUS303 stainless steel, passivated; contact pin: BeCu, gold-plated⁩

⁦PEI/PTFE insulator, MIL-STD-348 interface⁩

⁦Over 500 mating cycles; −55 °C to +165 °C operating range⁩

⁦4 part numbers: straight⁩

Part Numbers (4)

Part No.	Connector A	Connector B	Max. VSWR	Max. insertion loss	Catalog page	Drawing
SFHW12-00-105	2.92mm Female	SSMA Female	≤ 1.20	≤ 0.25 dB	32	Drawing
SFHW12-00-106	2.92mm Male	SSMA Female	≤ 1.20	≤ 0.25 dB	32	Drawing
SFHW12-00-107	2.92mm Male	SSMA MaleVariant 1 of 2	≤ 1.20	≤ 0.25 dB	32	Drawing

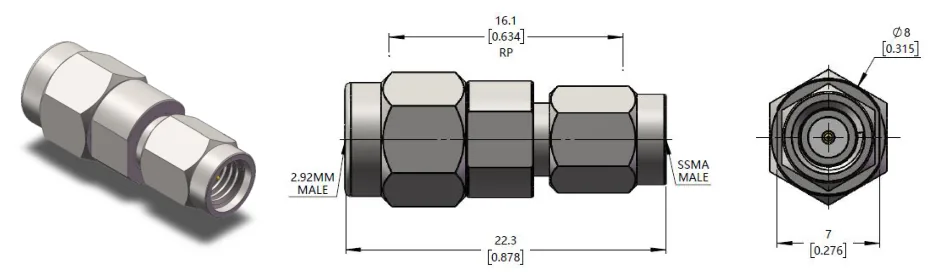

SFHW12-00-108	2.92mm Male	SSMA MaleVariant 2 of 2	≤ 1.20	≤ 0.25 dB	32	Drawing

Maximum values from the manufacturer's data. Contact Koto Electronics for stock, pricing and drawings.

Applications

⁦Converting between 2.92mm and SSMA connector interfaces on instruments, cables and test fixtures⁩⁦Test and measurement benches, production test and system integration⁩
